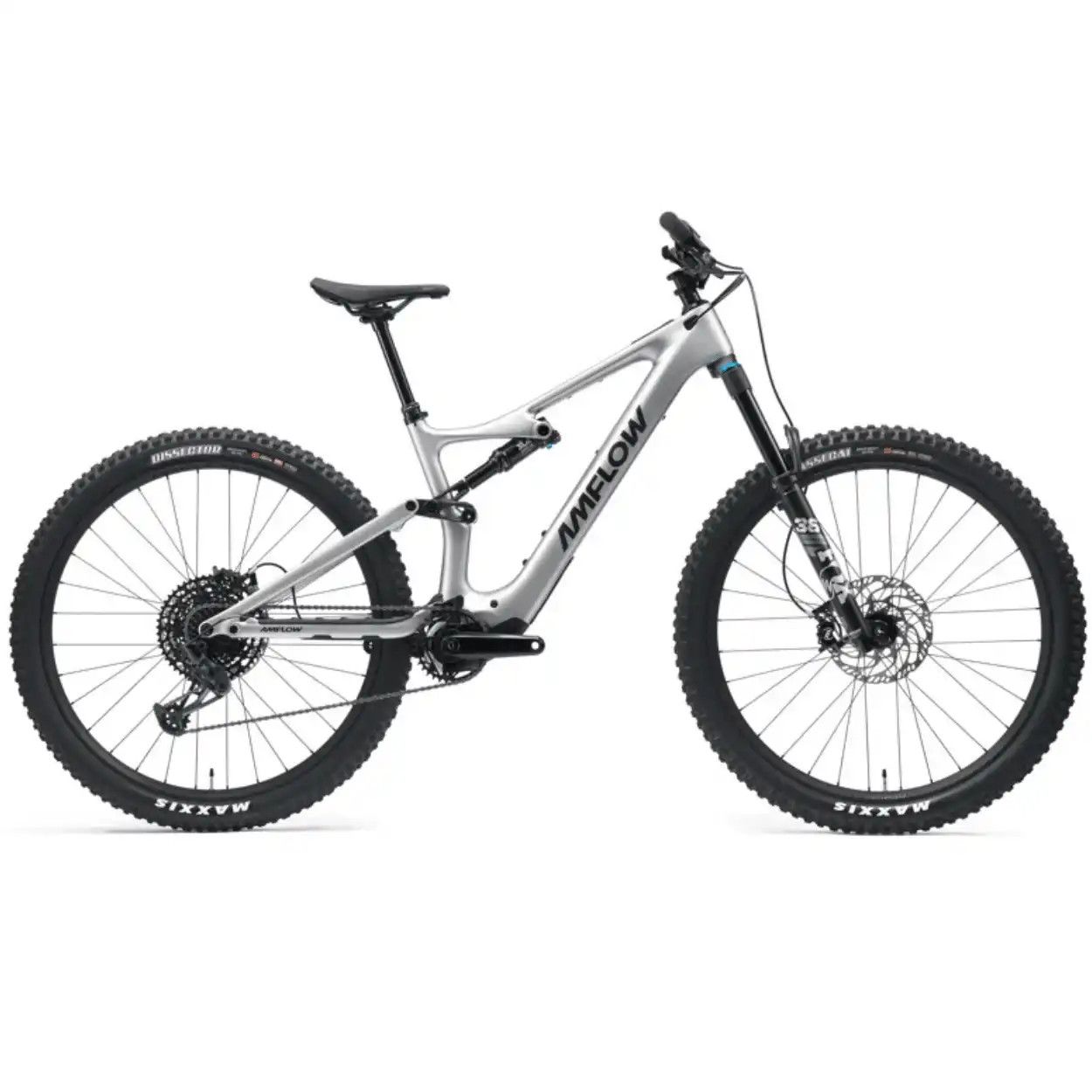

Amflow PL Carbon

Engineered for trailblazers and mountain adventurers, the Amflow PL Carbon is a revolutionary full-power electric mountain bike that combines ultra-lightweight design with cutting-edge performance. Built with a carbon fiber frame and powered by the Avinox Drive System, this eMTB delivers an unmatched riding experience across rugged terrain, steep inclines, and technical trails. Whether you're navigating alpine descents or forest singletracks, the Amflow PL Carbon offers precision, agility, and raw power in a sleek, futuristic package.

Key Features

• Ultra-Light Carbon Fiber Frame
  • Weighs just 2.27 kg
  • Total bike weight: 19.2 kg
  • Streamlined for speed, agility, and control
• Avinox Drive System
  • 2.52 kg motor with 105 N·m continuous torque
  • Peak torque: 120 N·m (Boost Mode)
  • Peak power output: 850 W
  • Compound planetary gearset for high power-to-size ratio
  • Durable polymer materials for noise suppression
• Battery & Charging
  • 800 Wh high-capacity battery
  • Range: up to 157 km
  • GaN 3x fast charging: 0% to 75% in 1.5 hours
  • Battery weight: 2.87 kg
  • Battery health management system with real-time monitoring
• Ride Modes
  • Eco, Trail, Turbo, Auto, Boost
  • Auto mode adapts assistance based on terrain and rider position
  • Boost mode delivers instant torque for steep climbs
• Touchscreen Display
  • 2-inch full-color OLED
  • Displays real-time ride data, range, and system status
  • Integrated with Avinox app for remote location tracking
• Intelligent Walk Assist
  • Auto Hold prevents rollback on slopes
  • Hill Start Assist for incline launches
  • Stationary gear shifting for smooth transitions

Highlights

• Versatile Geometry
  • Head tube angle: 64.5°
  • Chainstay length: 445 mm
  • Seat tube angle: 77°
  • Designed for balanced handling and responsive control
• Accessory Kits Included
  • Road Safety Kit: Front/rear lights (K-Mark/ISO/GB), bell, reflectors, mirror mount
  • Full-Bike Kit: Torque wrench, shock pump, SIM card screwdriver, pedals, USB-C cable
• Smart Integration
  • OLED display and Avinox app connectivity
  • Remote bike location and system diagnostics
• Noise Reduction
  • Internal polymer materials suppress gearbox noise during high-speed operation

Technologies

• Avinox M1 Drive Unit
  • Advanced sensors and algorithms for smooth, adaptive assistance
  • Compact and efficient motor design
• Battery Management System
  • Active voltage reduction
  • Abnormality alerts
  • Maintains 80% capacity after 500 full charge cycles
• OLED Touchscreen
  • Intuitive interface with high visibility
  • Syncs with mobile app for extended functionality

Specifications

• Product Name: Amflow PL Carbon
• Color: Silver
• Sizes Available: Medium (MD), Large (LG)
• Frame Material: Carbon Fiber
• Frame Weight: 2.27 kg
• Total Bike Weight: 19.2 kg
• Motor: Avinox M1 Drive Unit – 2.52 kg
• Torque: 105 N·m continuous, 120 N·m peak (Boost Mode)
• Power Output: 850 W peak
• Battery Capacity: 800 Wh
• Battery Weight: 2.87 kg
• Charging: GaN 3x Fast Charging (0–75% in 1.5 hrs)
• Range: Up to 157 km
• Display: 2-inch OLED touchscreen
• Ride Modes: Eco, Trail, Turbo, Auto, Boost
• Geometry:
  • Head Tube Angle: 64.5°
  • Chainstay Length: 445 mm
  • Seat Tube Angle: 77°
• Included Accessories:
  • Avinox 508W Fast Charger
  • AC Power Cable
  • Road Safety Kit (Lights, Bell, Reflectors, Mirror Mount)
  • Full-Bike Kit (Torque Wrench, Shock Pump, Screwdriver, Pedals, USB-C Cable)
• SKU (Medium): AMF-PLCARB-SIL-MD
• SKU (Large): AMF-PLCARB-SIL-LG
• UPC (Medium): 6975762000012
• UPC (Large): 6975762000013

The Amflow PL Carbon redefines what’s possible in electric mountain biking. With its featherweight frame, intelligent drive system, and high-capacity battery, it’s built for riders who demand peak performance and cutting-edge innovation. Whether you're climbing, descending, or cruising, this bike delivers a ride that’s as powerful as it is refined.
