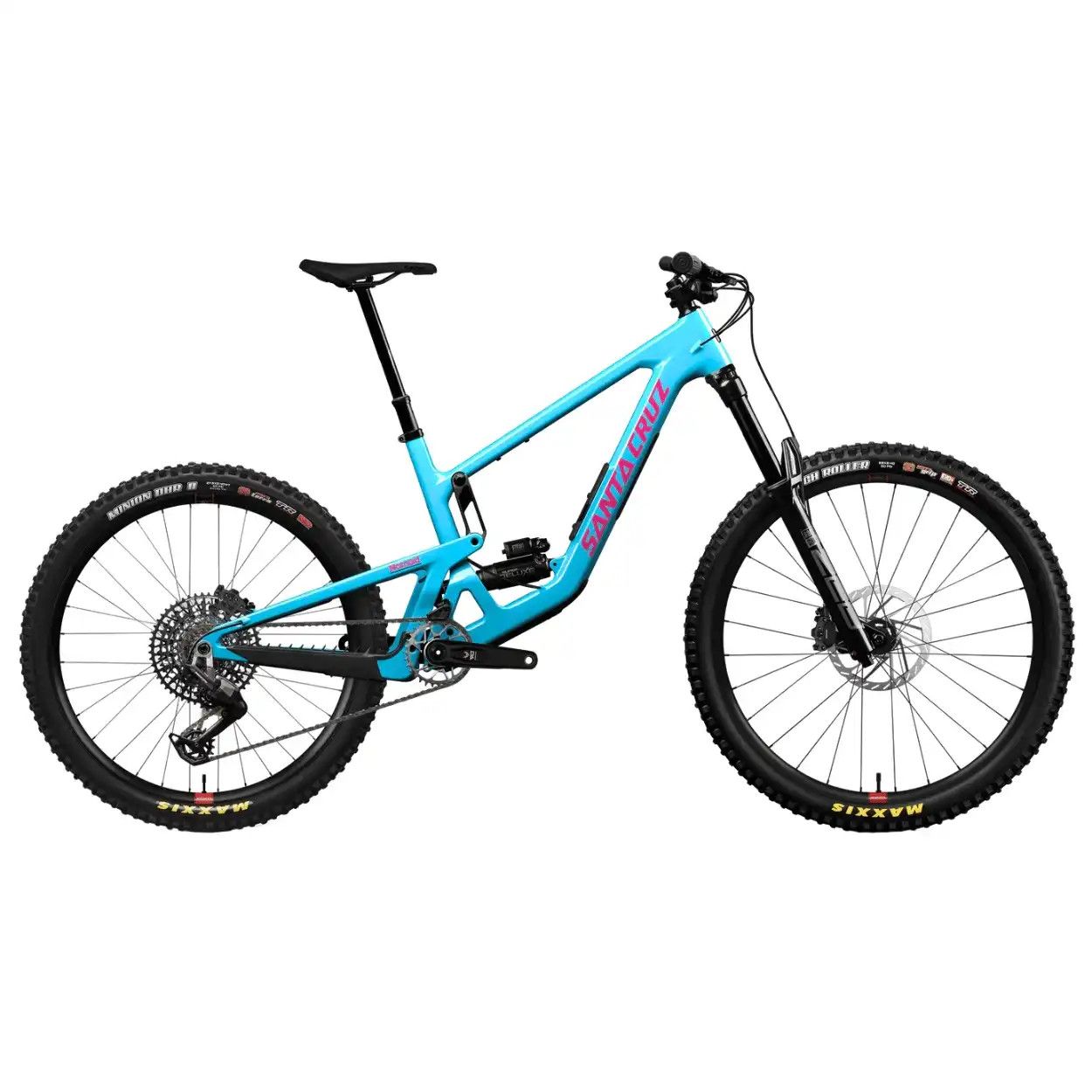

Santa Cruz Nomad 7 CC 90 MX '27

The Santa Cruz Nomad 7 CC 90 MX is designed for aggressive enduro riding where stability, traction, and control matter most. Built on a carbon CC chassis with a mixed-wheel layout, it combines long-travel suspension with modern geometry to stay composed on steep descents while remaining agile enough for tight, technical trail features. This is a platform built for riders who push hard into rough terrain and expect consistent performance when speed and consequences both increase.

Key Features

• Carbon CC MX frame with 170mm VPP™ suspension platform
• Mixed wheel configuration: 29” front / 27.5” rear for balanced stability and agility
• RockShox Zeb Select 170mm fork for aggressive terrain control
• RockShox Super Deluxe Select rear shock (230x65) tuned for descending support
• SRAM 90 Eagle T-Type 12-speed drivetrain for precise shifting under load
• SRAM Maven Base hydraulic disc brakes with 200mm rotors front and rear
• Reserve aluminum wheel system built for durability and impact resistance
• OneUp cockpit system including bar, stem, dropper post, and chainguide
• Integrated Glovebox downtube storage for trail essentials
• UDH-compatible rear triangle for drivetrain flexibility
• Threaded bottom bracket for serviceability and long-term reliability
• Enduro-focused geometry optimized for steep and technical terrain

Highlights

• MX wheel setup improves front-end rollover stability while keeping rear wheel responsiveness for fast directional changes
• VPP™ suspension design maintains traction under braking and delivers consistent support through rough terrain
• Long, progressive geometry enhances high-speed stability and confidence on steep descents
• SRAM T-Type drivetrain architecture improves chain retention and shifting precision under load
• High-power SRAM Maven braking system provides strong modulation and heat management on extended descents
• Integrated storage reduces need for packs on shorter, aggressive rides
• Frame stiffness tuning supports precise steering feedback at speed
• Designed for repeated impacts in bike park, enduro racing, and alpine technical terrain

Technologies

• VPP™ Suspension System: Dual-link suspension designed for traction, pedaling efficiency, and descending control
• Carbon CC Frame Construction: Lightweight, high-strength carbon layup optimized for aggressive riding loads
• MX Wheel Platform: 29” front / 27.5” rear combination for stability and maneuverability balance
• SRAM T-Type Drivetrain: Full-system transmission designed for durability and precise shifting under load
• UDH Compatibility: Universal derailleur hanger standard for drivetrain serviceability
• Integrated Glovebox Storage: Frame-mounted internal storage compartment for tools and essentials
• Reserve Tubeless System: High-flow valve system for efficient tire setup and inflation
• Threaded Bottom Bracket: Service-friendly interface designed for long-term durability

Sizing & Geometry

Size Range:

• Medium (MD), Large (LG)

Rider Height:

• Medium: 5'5" – 5'9"
• Large: 5'9" – 6'1"

Reach:

• Medium: 455mm
• Large: 475mm

Stack:

• Medium: 633/635mm
• Large: 643/645mm

Head Tube Length:

• Medium: 110mm
• Large: 120mm

Head Tube Angle:

• Medium: 63.6° / 63.3°
• Large: 63.6° / 63.3°

Seat Tube Length:

• Medium: 400mm
• Large: 420mm

Seat Tube Angle:

• Medium: 78.2° / 78.1°
• Large: 78.6° / 78.4°

Seat Tube Angle at Saddle Height:

• Medium: 77.4° / 77.1° (at 730mm)
• Large: 77.4° / 77.1° (at 780mm)

Wheelbase:

• Medium: 1246/1247mm
• Large: 1276/1274mm

Front Center:

• Medium: 805/805mm
• Large: 830/830mm

Rear Center (Chainstay):

• Medium: 441/442mm
• Large: 444/445mm

Top Tube Length:

• Medium: 587/586mm
• Large: 604/605mm

Standover Height:

• Medium: 719/715mm
• Large: 722/718mm

BB Height:

• Medium: 346/342.5mm
• Large: 346/342.5mm

BB Drop Front:

• Medium: 26.5/30mm
• Large: 26.5/30mm

BB Drop Rear:

• Medium: 8/11.5mm
• Large: 8/11.5mm

Specifications

• Frame Material: Carbon CC
• Frame: Carbon CC MX 170mm Travel VPP™
• Suspension Travel: 170mm Front / 170mm Rear
• Fork: RockShox Zeb Select, 170mm
• Rear Shock: RockShox Super Deluxe Select, 230x65
• Wheel Size: MX (29” front / 27.5” rear)
• Weight: 35.15 lbs / 15.94 kg
• Drivetrain: SRAM 90 Eagle T-Type, 12-speed
• Cassette: SRAM XS 1275 Eagle T-Type, 10-52t
• Chain: SRAM GX Eagle T-Type Flattop
• Crankset: SRAM 90 Eagle DUB T-Type, 32t
• Bottom Bracket: SRAM DUB 73mm MTB Wide
• Brakes: SRAM Maven Base
• Rotors: SRAM HS2 200mm front / 200mm rear
• Handlebar: OneUp Aluminum Bar, 800mm
• Stem: OneUp Enduro Stem, 42mm
• Grips: Santa Cruz House Grips
• Seatpost: OneUp Dropper Post, 31.6mm
• Dropper Travel: 150mm / 180mm / 210mm / 240mm (size dependent)
• Saddle: SDG Bel-Air V3 Lux-Alloy
• Front Wheel: Reserve 30|TR AL, DT Swiss 370 hub
• Rear Wheel: Reserve 30|HD AL, DT Swiss 370 hub
• Front Tire: Maxxis High Roller 29"x2.4" EXO+
• Rear Tire: Maxxis Minion DHR II 27.5"x2.4" Double Down
• Headset: Cane Creek 50 IS Integrated
• Rear Spacing: 148mm
• Chainline: 55mm
• Fork Offset: 44mm
• Fork Axle to Crown: 588mm
• Fork Compatibility: 170–180mm
• Max Chainring: 36t
• Max Rotor Size: 223mm
• Seatpost Diameter: 31.6mm
• Seat Clamp: 36.4mm
• Shock Length: 230mm
• Shock Stroke: 65mm
• Shock Bushing Size: 30x8 front / 30x8 rear
• Suspension System: VPP™
• Downtube Storage: Glovebox
• UDH Compatible: Yes
• Water Bottle Mounts: 1
• Colors: Gloss Aqua Magenta, Matte Metallic Earth
• SKUs | UPCs: 58-27322-454-3-942-262501 | 192219529523, 58-27322-454-4-941-262501 | 192219529530

The Nomad 7 CC 90 MX is a purpose-built enduro machine that blends long-travel suspension, mixed-wheel dynamics, and progressive geometry into a platform optimized for aggressive descending. It remains composed at speed, highly capable in technical terrain, and responsive when lines tighten, making it a strong choice for riders who want maximum control and confidence on demanding trails.
