Scott Strike eRide 940

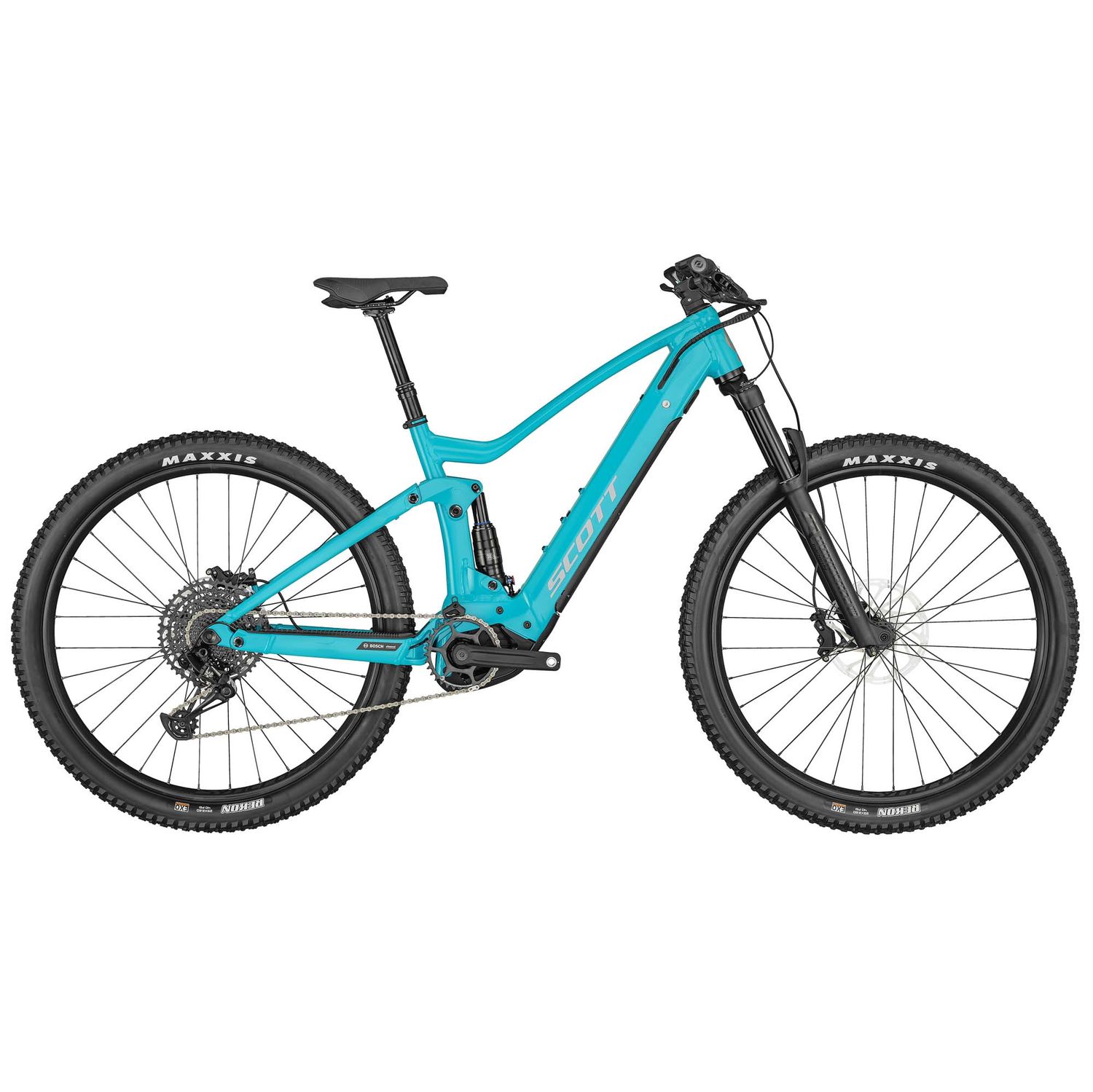

The Scott Strike eRide 940 is the epitome of comfort and performance for a full suspension e-MTB. Designed for off-road adventures, this bike combines state-of-the-art integration, high-end components, and a powerful Bosch drive unit to deliver an exceptional riding experience. Available in Cerulean Blue, this model comes in sizes Small (SM), Medium (MD), and Large (LG).

Key Features:

• Frame: Strike eRIDE Alloy Frame
• Fork: Marzocchi Z2 Air 140mm
• Rear Shock: X-Fusion Nude, 140mm, TwinLoc
• Drive Unit: Bosch Performance CX, up to 1000Wh, PowerTube
• Brakes: Shimano 4 Piston Disc Brakes
• Dropper Post: Syncros Duncan Dropper Post

Highlights:

• Comfort: Full suspension design ensures a smooth ride on rough terrains.
• Integration: State-of-the-art integration with Bosch drive unit.
• Components: High-end components for reliable performance.
• Versatility: Compatible with 27.5" and 29" wheels.
• Adjustability: Geo adjustment for personalized setup.

Technologies:

• TwinLoc Suspension System: Allows for three modes of suspension adjustment - Lockout, Traction Control, and Descend.
• Bosch Performance CX Drive Unit: Provides powerful assistance with up to 1000Wh capacity.
• Syncros Components: High-quality parts including handlebars, stem, and seatpost for enhanced control and comfort.

Specifications:

• Frame: Alloy Frame / Virtual 4 link kinematic VLK / Boost 148x12mm / 140mm travel / Bosch Gen4 / Integrated removable Battery / Tapered Headtube E2 / Central Kickstand Mount / Range Booster Ready
• Fork: Marzocchi Z2 Air / eMTB+ Rail 3 / 3-Modes / 15x110mm QR axle / tapered steerer 44mm offset / Reb. Adj. / Lockout / 140mm travel
• Rear Shock: X-Fusion NUDE Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend / Reb. Adj. Travel 140-90-Lockout / 185x50mm
• Remote System: SCOTT TwinLoc 2 Technology Suspension & Dropper Remote 3 modes
• Drive Unit: Bosch Performance CX EU: 25kmh / INT: 20mph
• Battery: PowerTube 500Wh
• Display: Bosch Purion
• Charger: 4A Charger
• Rear Derailleur: SRAM NX Eagle / 12 Speed
• Shifters: SRAM SX Eagle Single Click
• Crankset: FSA CK-320 / 165mm / 34T
• Chainring: SRAM Eagle 34T DM / Steel
• Chain: SRAM SX Eagle
• Cassette: SRAM PG1210 / 11-50 T
• Brakes: SRAM DB8 4 Piston Disc
• Rotor: Centerline CL Rotors 200mm F&R
• Handlebar: Syncros Hixon 2.0 Rise / Alloy 6061D.B. 20mm rise / 8° / 760mm
• Grips: Syncros Comfort lock-on grips
• Stem: Syncros FL2.0 / 6061 Alloy L-Shape Spacer & Top Cap / 31.8mm / 6° / 1 1/8"
• Seatpost: Syncros Duncan Dropper Post 2.5 31.6mm / S size 100mm / M size 125mm / L size 150mm / XL size 170mm
• Seat: Syncros Capilano
• Headset: Syncros ER2.0 Press Fit E2 / Tapered 1.5"-1 1/8" OD 52/62mm / ID 44/56mm
• Hub (Front): Formula CL-811 / 15x110mm
• Hub (Rear): Formula CL-148S / Boost 148x12mm
• Spokes: Stainless Black
• Rims: Syncros MD30 / 32H / 30mm / Pin Joint Tubeless ready
• Front Tire: Maxxis Rekon / 29x2.6" / 60TPI Wire Bead EXO Dual
• Rear Tire: Maxxis Rekon / 29x2.6" / 60TPI Wire Bead EXO Dual
• Lights: Bosch Light Cable pre-installed F&R
• Approx weight in KG: 23.9 (with tubes)
• Approx weight in LBS: 52.69 (with tubes)
• Max. System Weight: 128kg (includes bike, rider, equipment, and possible additional luggage)
• SKU | UPC:
  • 290546-006 | 192820748528
  • 290546-008 | 192820748535
  • 290546-010 | 192820748542
• Colors: Cerulean Blue
• Sizes: Small (SM), Medium (MD), Large (LG)

The Scott Strike eRide 940 is a versatile and reliable e-MTB that offers exceptional comfort and performance for all your off-road adventures. With its advanced technologies and high-quality components, this bike is designed to meet the needs of both casual riders and serious enthusiasts.
